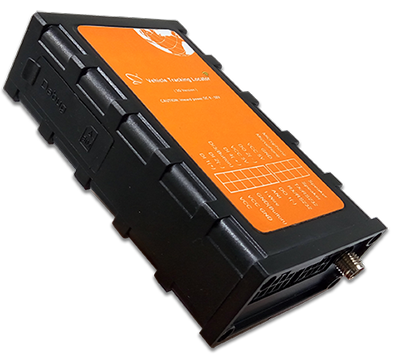

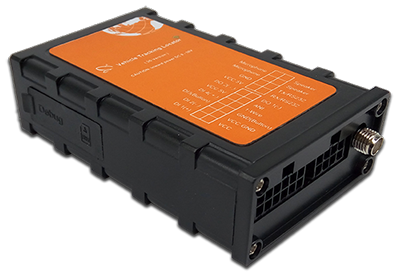

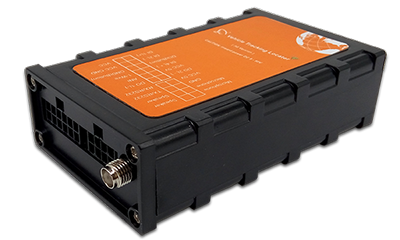

Model No.: AT07-3G

gps tracker

Supported in world popular GPS tracking software platforms: www.traccar.org    www.gurtam.com    www.gpsgate.com   www.gps-server.net

Features

• Send data to two servers simultaneously
• 3-Axis Digital Accelerometer movement status monitoring
• Firmware upgrade by OTA
• Support DC 9v --50v , over-voltage protection
• Send commands to GPS trackers via GPRS or SMS
• Send GPRS data to IP or domain name
• 16Mb Flash Memory( stores 4000pcs or so data)
• Fuel/oil level detection with high accuracy
• Google map link sent via SMS
• Voice monitoring function with microphone
• user defined settings on I/O ports: digital input, digital output, analog input
To see the traces of AT07, please check here:

solutions and managements which AT07 supports

Description for GPS tracking

• UMTS/ HSPA+ and GSM/ GPRS/ EDGE coverage:
• 850/900/1800/1900MHz@GSM
           • 900/2100MHz@UMTS
• u-blox GPS module with high GPS positioning accuracy
• Voice SMS, GPRS TCP / UDP communications
• Real time tracking and history data traces tracking
• Track by cell phone or web based tracking software
• Real-time tracking (Time, Distance Interval or Intelligent Mode)
• Alarm types: Over-speed, Low power, tremble, Parking, SOS,exterior power off, Internal power low alarm
• Control car doors close/open, Detect the status of engine on/off
• Intelligent power management: normal, sleep, deep sleep
• 16Mb flash memory for data storage in GSM blind area
• Sleep mode for Saving Power and GPRS traffic
• Backup battery: 800 mAh Li Polymer battery
• Geo-fencing reports: into-Geo-fence; Out Geo-fence
• Motion sensor for vehicle motion detections
• Different GPRS data string sending intervals:
           • sending data at certain interval in engine on or tremble state;
           • sending data at the other interval in engine off or still state
• Flexible GPRS data sending modes by different triggers:
           data string sent by time interval;
           data string sent by distance;
           data string sent by course change.

Alarm Events



Peripherals

Standard:
GPS Antenna: 1pcs |   I/O cables: 1 set

Optional:
Relay | Door Sensor | Fuel Sensor | Camera | Temperature sensor | Microphone | Speaker | Buzzer | Ibutton Reader and Ibutton tags | RFID reader and RFID tags |
LED lamp | weighing sensor | fuel consumption meter

Technical Properties

ITEMS	SPECFICATIONS
Power Supply	+12v --- +60v / 1.5A
Backup Battery	800mAh
Normal power consumption	2W, 12.5W at peak
Dimension	89*55*25mm
Weight	100g
Operating temperature	-20° to 60° C
Humidity	5% to 95% Non-condensing
Frequency	900/2100MHz@UMTS; 900/1800MHz@GSM
GPS Module	u-blox g7020 KT
GPS Sensitivity	-162 dBm
Receiver type	50 Channels | GPS L1 frequency, C/A Code | SBAS: WAAS, EGNOS, MSAS
Horizontal position accuracy	GPS 2.5 m | SBAS 2.0 m | SBAS + PPP7 < 1 m (2D, R50)8) |  SBAS + PPP7 < 2 m (3D, R50)8
Velocity Accuracy	0.1 m/s
Reacquisition	0.1 sec., average
Hot start	1 s
Warm start	1 s
Cold start	27 s
Heading accuracy	0.5 degrees
Velocity Accuracy	0.1m/s
LED	3 LED lights to show GPS/GSM/Power status
Flash Memory	16Mb
Button	One SOS Button
Interface	1 switch input, 4 digital inputs , 3 digital outputs, 1 analog inputs,  1 RS232 ports, 1 1-wires for temperature sensors, 4 ports for voice communication

Packing Details

weight for 1 set device: 0.1kg
box size:                           16*4.5*12.5cm ( 6.3*1.8*4.9in)
weight for 1 carton:         800g
size for 1 carton:              48*34*32 cm
capacity in one carton:   50pcs box / carton
