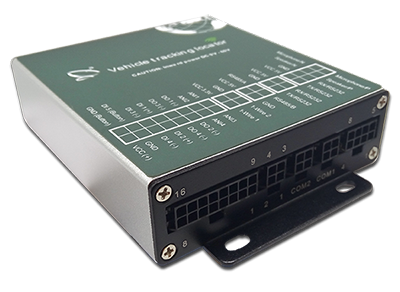

Model No.: AT09

advanced gps tracker + TPMS

Supported in world popular GPS tracking software platforms: www.traccar.org    www.gurtam.com    www.gpsgate.com   www.gps-server.net

Features

• Tire Pressure monitoring in Realtime
• 4 fuel sensors monitoring simultaneously
• 2 temperature sensors monitoring simultaneously
• Send data to two servers simultaneously
• Three serial ports supporting multi devices: display, camera, RFID reader, Garmin Navigator, etc.
• Real time tracking and history data traces tracking
• 3-Axis Digital Accelerometer movement status monitoring
• Firmware update by OTA
• Support DC 9v --50v , over-voltage protection
• Send commands to GPS trackers via GPRS
• Send GPRS data to IP or domain name
• 16Mb Flash Memory( stores 4000pcs or so data)
• Fuel/oil level detection with high accuracy
• Google map link sent via SMS
• Voice monitoring function with microphone
• Micro SD card integration
To see the traces of AT09, please check here:

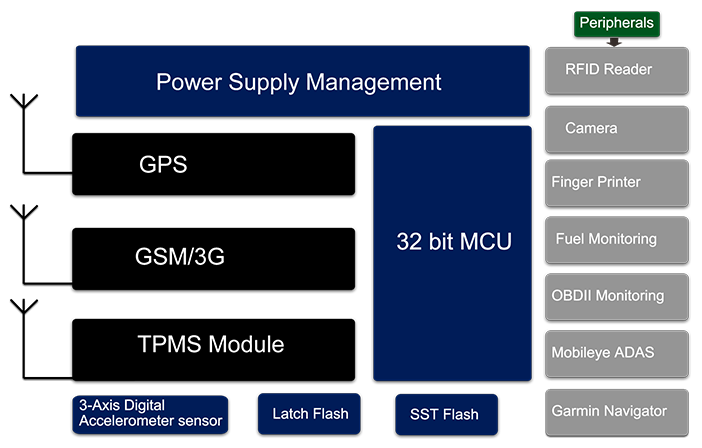

solutions and managements which AT09 supports

Description for GPS tracking

• GSM: Quad-band: GSM850 / E-GSM900 / DCS1800 / PCS1900
• U-blox GPS module with high GPS positioning accuracy
• Voice SMS, GPRS TCP / UDP communications
• Track by cell phone or web based tracking software
• Real-time tracking (Time, Distance Interval or Inbtelligent Mode)
• Alarm types: Over-speed, Low power,
  Tremble, Parking, SOS,exterior power off
• Control car doors close/open, Detect the status of engine on/off
• Real-time tracking (Time, Distance Interval or Intelligent Mode)
• Intelligent power management: normal, sleep, deep sleep
• Different GPRS data sending modes for saving GPRS traffic:
           sending data in engine on or tremble state;
           stop sending data in engine off or still state
• 16Mb flash memory for data storage in GSM blind area
• Sleep mode for Saving Power and GPRS traffic
• Backup power: 800 mAh Li-polymer battery
• Internal power low / lost alarm
• Geo-fencing reports
• Motion sensor for vehicle motion detections



Alarm Events

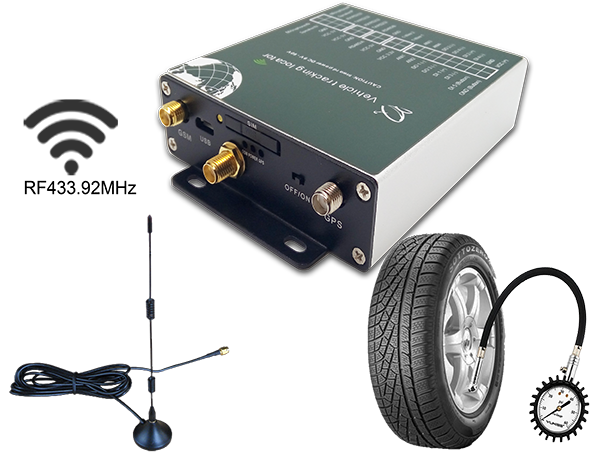

Tire Pressure Monitoring in GPS Tracking

• Anti tires theft Realtime
• Monitoring tires pressure, tires temperature, sensor volt online
• alarms for tires pressure, tires temperature, sensor volt to server, APP
• alarm tire pressure value adjustable
• Replaceable battery for valve-cap sensor: CR1632
• valve-cap external sensors
• Anti theft sensors mounting design
• Intelligent power consumption on 3-Axis digital Accelerometer
• Extend the life of the tire, better tires management
• Reduce tires maintenance cost, save clients money
Click here for More...

Accessories

Technical Properties

ITEMS	SPECIFICATIONS
Power Supply	+12v --- +60v / 1.5A
Backup Battery	800mAh
Normal power consumption	2W, 12.5W at peak
Dimension	93*82*30mm
Weight	150g
Operating temperature	-20° to 60° C
Humidity	5% to 95% Non-condensing
Frequency	Quad Band GSM 850/900/1800/1900Mhz
GPS Module	u-blox UBX-G7020 KT
GPS Sensitivity	-162 dBm
Receiver type	50 Channels | GPS L1 frequency, C/A Code | SBAS: WAAS, EGNOS, MSAS
Horizontal position accuracy	GPS 2.5 m | SBAS 2.0 m | SBAS + PPP7 < 1 m (2D, R50)8) |  SBAS + PPP7 < 2 m (3D, R50)8
Velocity Accuracy	0.1 m/s
Reacquisition	0.1 sec., average
Hot start	1 s
Warm start	1 s
Cold start	27 s
Heading accuracy	0.5 degrees
Velocity Accuracy	0.1m/s
LED	3 LED lights to show GPS/GSM/Power status
Flash Memory	16Mb
Button	One SOS Button
Interface	1 switch input, 4 digital inputs , 4 digital outputs, 4 analog inputs,   2 RS232 ports, 1 RS485 port, 2 1-wires for temperature sensors, 4 ports for voice communication

size



Packing Details

net weight for 1 AT09:         150g
weight for 1 box + 1 device: 800g
weight for 1 carton:              800g
size for 1 carton:                  48*34*32 cm
24pcs box / carton
